Challenge
One of my colleagues completed a successful Kickstarted campaign to launch the iOgrapher, an innovative enclosure that held an iPad Mini so that it could be transformed into a full-featured video camera. After he shipped his first batch of units, he was getting a number of support requests with basic questions about how to install and remove the iPad from the enclosure. I developed this printed guide as a solution. I wrote the instructions, created the graphics, and assembled it all into a two-sided layout to be shipped with the product.
![](https://pro2-bar-s3-cdn-cf.myportfolio.com/3a5467e527907ec1d817373afd9d980b/8231de56d10e64321d275c8d_rw_1920.jpg?h=77d7250f79e80a39a2426888514b9b0a)

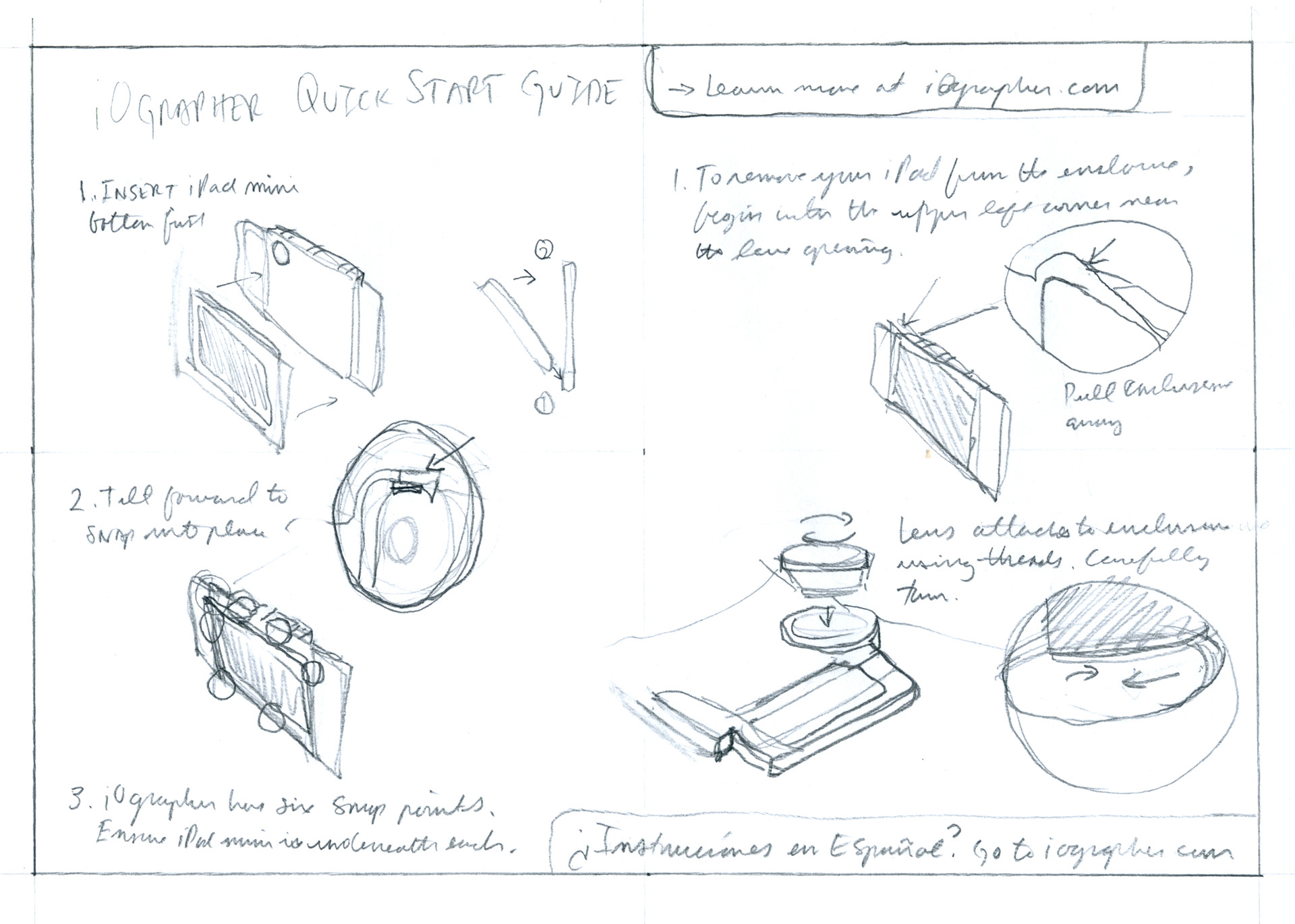

An initial sketch to block out the steps and organize them on a single sheet of paper.
![](https://pro2-bar-s3-cdn-cf5.myportfolio.com/3a5467e527907ec1d817373afd9d980b/6df02c992e00a4a49482bfb1_rw_1200.jpg?h=97e19cfebd4163f6b87486f6a7225834)

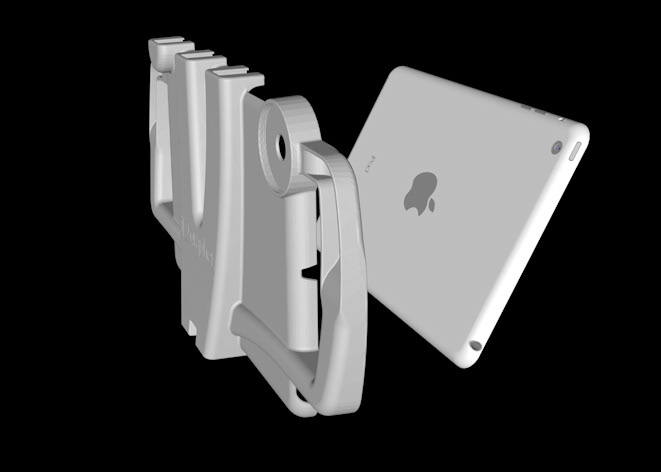

One of the graphics exported for the guide from Cinema 4D. I used the original 3D file to get the view I needed to properly illustrate each step and then exported the image as .tiff file.
![](https://pro2-bar-s3-cdn-cf4.myportfolio.com/3a5467e527907ec1d817373afd9d980b/fa83319f14895c73b9e45236_rw_1200.jpg?h=961baba0f8253218394b896dbdf640fd)
![](https://pro2-bar-s3-cdn-cf3.myportfolio.com/3a5467e527907ec1d817373afd9d980b/4f0d384ea81ad5fc4ca72504_rw_1200.jpg?h=79d36c8305367a7d777ebf4d4b21bb92)

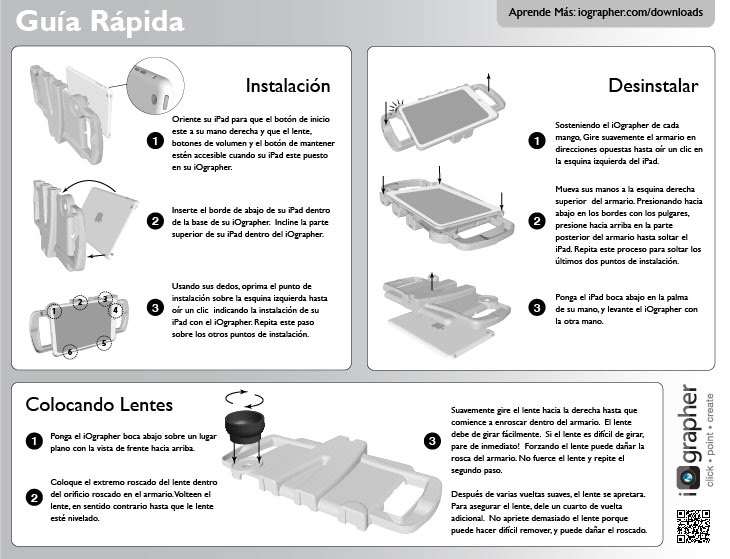

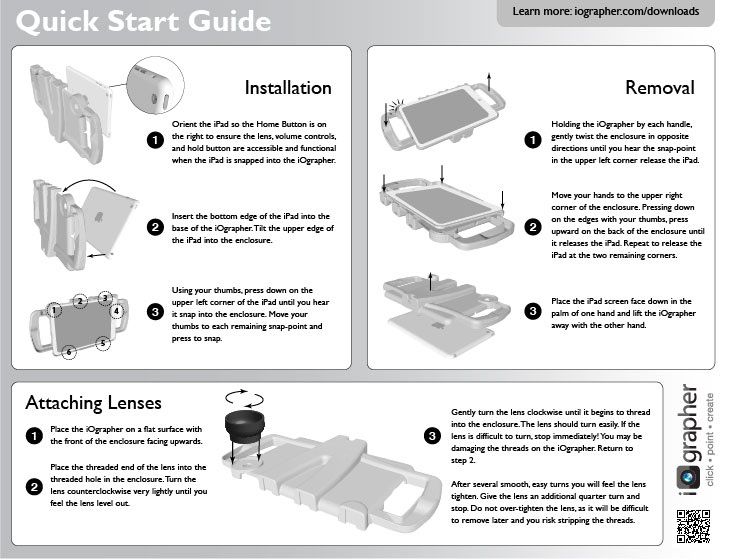

A translator translated the instructions I wrote in English into Spanish. I completed a second layout and the finished document was two-sided: one side devoted to English and the other to Spanish.
![](https://pro2-bar-s3-cdn-cf3.myportfolio.com/3a5467e527907ec1d817373afd9d980b/e2f074ff3ebc0f88705a58e8_rw_3840.jpg?h=f64d8068723d717081ea950b8781074d)

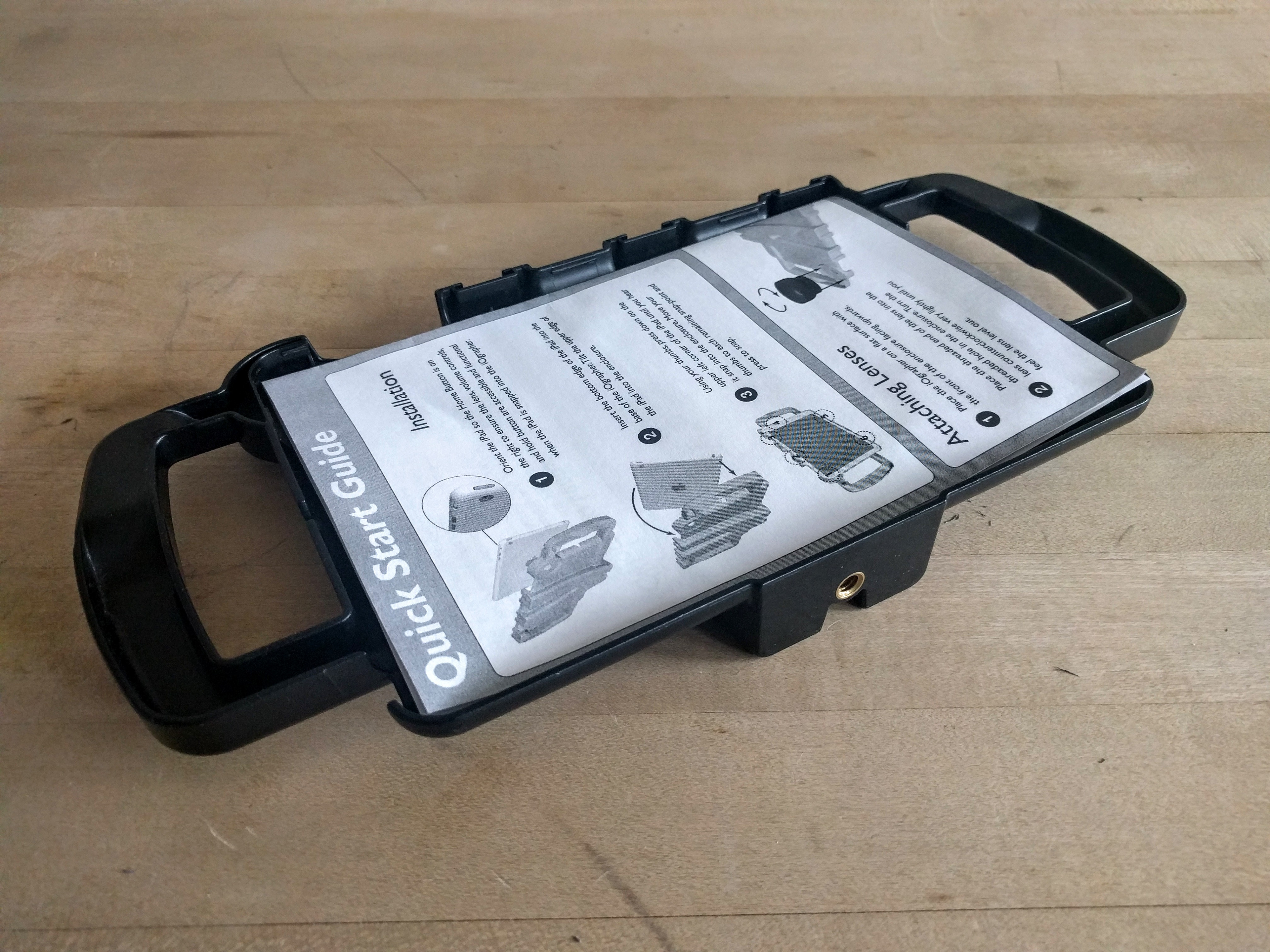

The guide was sized the fit inside the enclosure and was included when prepping units for shipping.
